Expanded corner bead production & processing
Angle bead consists of 2 expanded metal wings and a solid metal nose. It is designed to produce a truly straight corner, protect and reinforce plaster with its metal wings that offered by expanded metal construction to avoid corner indentations and other damages. Angle bead has excellent resistance to cracking, chipping and impact damage on corners and edges. It is widely used in various buildings for corner protection and reinforcement.
Generally, Galvanized steel angle beads are recommended for internal uses and stainless steel angle beads are recommended for external uses. In addition, Stainless steel angle bead is specially designed for cement-based renders and shall not be used with gypsum-based plasters.
Our angle beads are divided into expanded metal angle beads, perforated drywall plaster angle beads and PVC angle beads by material.
Expanded corner bead
Double-X corner bead
Double-V control joint
Double-J control joint
Render stop bead
Plaster stop bead
Movement bead
Expanded corner bead consists of 2 expanded metal wings with a width of 2-5/8" and a solid metal nose. The wide wings are flexible and can be easily flexed over irregular, uneven surfaces, which makes it an ideal choice for irregular corners. Plaster keys near the solid nose provide reinforcement where needed most to ensure straight corners.
We offer both Galvanized steel and Stainless steel expanded corner beads. Generally, Galvanized steel expanded corner beads are recommended for internal uses and Stainless steel expanded corner beads are recommended for external uses.
Expanded corner bead is designed to provide true, straight corners to avoid cracking and chipping while protecting edges from impact damage. It is often used for exterior wall corner reinforcement and protection.
| Reference | Width of Wing (mm) | Length (mm) | Material |
|---|---|---|---|
| ECBGS45 | 45 | 2400/2700/3000 | Galvanized steel |
| ECBGS50 | 50 | 2400/2700/3000 | Galvanized steel |
| ECBGS55 | 55 | 2400/2700/3000 | Galvanized steel |
| ECBGS65 | 65 | 2400/2700/3000 | Galvanized steel |
| ECBGS75 | 75 | 2400/2700/3000 | Galvanized steel |
| ECBGS100 | 100 | 2400/2700/3000 | Galvanized steel |
| ECBSS45 | 45 | 2400/2700/3000 | Stainless steel |
| ECBSS50 | 50 | 2400/2700/3000 | Stainless steel |
| ECBSS55 | 55 | 2400/2700/3000 | Stainless steel |
| ECBSS65 | 65 | 2400/2700/3000 | Stainless steel |
| ECBSS75 | 75 | 2400/2700/3000 | Stainless steel |
| ECBSS100 | 100 | 2400/2700/3000 | Stainless steel |
Double-X corner bead provides extra strength and rigidity by integrating a 3-1/4" wide wing with an added stiffener ridge, which makes it a perfect choice for corners in high traffic areas.
| Reference | Size | |
|---|---|---|
| Width (in) | Length (ft) | |
| DXCB314 | 3-1/4 | 10 |
| DXCB318 | 3-1/8 | 8 |
| 9 | ||
| 10 | ||
| 12 | ||
Double-V control joint is used to relieve stress and strains in large plaster area of walls and ceilings. Expanded diamond mesh wings are provided for proper keying and easy application.
This inconspicuous product offers a clean, neat joint in exterior applications. It relieves the stress of expansion and contraction in association with natural shrinkage during stucco curing and basic thermal changes, minimizes crackings in large plastered areas to a large extent and helps to prevent stucco separation at the edge of joints.
| Reference | Plaster Depth (in) | Length (ft) |
|---|---|---|
| VVCJ | 1/4 | 10 |
| 3/8 | 10 | |
| 1/2 | 10 | |
| 3/4 | 10 | |
| 7/8 | 10 |

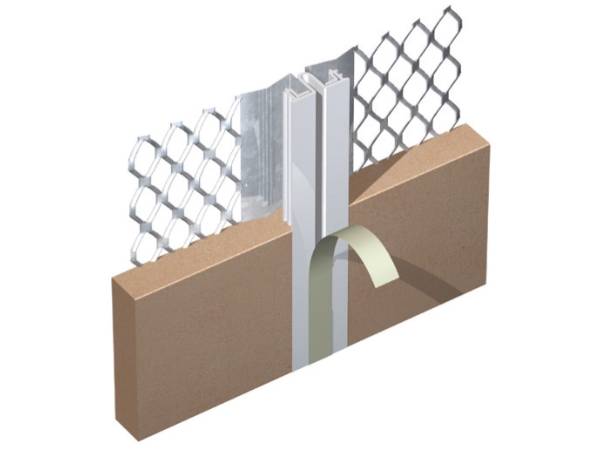

Similar to double-V control joint, double-J control joint has a 5/16" reveal, rolled outer edge that allows stucco to be fixed under rolled edges to provide increased bonding property and prevent visible separation and cracking. When the stucco is forced under the J flange, this special design helps to reduce stucco separation at the edge of joints.
The joint is taped to prevent stucco from getting caught inside during construction. Then remove the tap easily when the construction is finished.
| Reference | Plaster Depth (in) | Length (ft) |
|---|---|---|
| JJCJ | 1/2 | 10 |
| 3/4 | 10 | |
| 7/8 | 10 |
Render stop bead is used to obtain a neat bell-cast lower edge at the bottom of the external render finish to protect the edge and provide excellent protection to masonry against run-off water.
| Reference | Plaster Thick (mm) | Flange Size (mm) | Thickness (mm) | Length (m) |
|---|---|---|---|---|
| RSB16 | 16 | 45 | 0.45 | 3 |
| RSB20 | 20 | 45 | 0.45 | 3 |
Plaster stop bead is a kind of J-shaped angle bead made from galvanized steel sheet or stainless steel sheet.
Plaster stop bead provides straight edges for one or two-coat veneer plaster finishes to wall openings and wall or ceiling intersections and protect plaster edges from damage. Besides, its wide wings enhances the bonding property of the plaster to prevent it from cracking.
| Product Code | Ground | Length | Pcs./Ctn. | Ft./Ctn. | Wt./Ctn. | Ctn./Skid |
|---|---|---|---|---|---|---|
| PSBGS38 | 3/8" | 10' | 30 | 300' | 46 lbs. | 20 |
| PSBGS12 | 1/2" | 10' | 30 | 300' | 46 lbs. | 20 |
| PSBGS58 | 5/8" | 10' | 30 | 300' | 49 lbs. | 20 |
| PSBGS37 | 3/4" | 10' | 30 | 300' | 49 lbs. | 20 |
| PSBGS78 | 7/8" | 10' | 30 | 300' | 54 lbs. | 20 |
| PSBGS1 | 1" | 10' | 30 | 300' | 56 lbs. | 20 |
| PSBGS114 | 1-1/4" | 10' | 30 | 300' | 60 lbs. | 20 |
Movement bead is used to relieve the stress and strain in large plaster area of walls and ceilings and to allow the movement between adjacent surface finishes. Moreover, it overcomes the movement tolerance in plaster, gives a neat render finish and minimizes crackings in plasters to a large extent.
Movement bead is widely used in all kinds of buildings with expansion and contraction joints and is suitable for all kinds of brick and reinforced concrete surfaces.
| Reference | Plaster Depth (mm) | Length (mm) | Material |
|---|---|---|---|
| MBGS10 | 10 | 3000 | Galvanized steel |
| MBGS13 | 13 | 3000 | Galvanized steel |
| MBGS16 | 16 | 3000 | Galvanized steel |
| MBGS19 | 19 | 3000 | Galvanized steel |
| MBSS10 | 10 | 3000 | Stainless steel |
| MBSS13 | 13 | 3000 | Stainless steel |
| MBSS16 | 16 | 3000 | Stainless steel |
| MBSS19 | 19 | 3000 | Stainless steel |
Perforated drywall plaster angle bead is a metal strip attached along an inner or outer corner of stucco walls. It consists of 2 expanded metal wings and a solid metal nose. It may serve as a plaster block to provide straight edges and high strength to support and protect building corners from cracking and chipping while offering a clean, neat plaster surface.
Perforated drywall plaster angle bead comes in a variety of patterns and types to suit to different wall types.
| Reference | Width of Wing (mm) | Length (mm) | Material |
|---|---|---|---|
| PDPAB32 | 32 | 2400/3000 | Galvanized steel |
PVC-U angle bead
PVC corner bead with fiberglass mesh
PVC-U angle bead is not easy to damage, rust-resistant and straight. Its large perforated opening allows premier mix flowing through and bonding to the substrate, thereby obtaining a better embedment effect.forcement and protection.
PVC-u angle bead offers a clean, straight corner edge to reinforce and protect the external corners from damage.
PVC-U angle bead comes in a variety of patterns including round, square, diamond, hexagon, triangle or custom patterns. For specific specifications, please refer to the table below.
| PAB10 | PAB12 | PAB15 | PAB19 |
|---|---|---|---|
| T = 10 mm | T = 12 mm | T = 15 mm | T = 19 mm |
| W = 40 mm | W = 40 mm | W = 40 mm | W = 40 mm |
| L = 2.5 m | L = 2.5 m | L = 2.5 m | L = 2.5 m |
| 6–10 mm plaster thickness | 8–12 mm plaster thickness | 15 mm plaster thickness | 13–19 mm plaster thickness |
PVC corner bead with fiberglass mesh consists of perforated PVC angle bead and reinforcing fiberglass mesh. It is specially designed for all 90 째C angle constructions, including interior plastering, wall corners, arches, windows and doors.
PVC corner bead with fiberglass mesh can solve common corner construction problems quickly and effectively, such as out-of-straight positive angles, rough surfaces and easily damaged wall corners.
Round or square perforated openings on PVC corner bead with fiberglass mesh are designed to seal the substrate easily. The fiberglass mesh plays a role of reinforcement that offers an added strength for corner structures.
| PVC corner bead |
|
|---|---|
| Fiberglass mesh |
|
| Length (common) | 2–3 m |
| Weight | 60–180 g/m2 |
| Color | White (standard), brown, blue, orange or customized. |
Expanded corner bead production & processing
PVC corner bead with fiberglass mesh production & processing
Expanded corner bead inspection
For internal corner applications
For external corner applications
For wall corner plastering
For wall corner plastering
For window plastering
For ceiling plastering applications
Control joint bead application
For wall plastering
Carton package
Plastic film package
Wood case package
Loading & shipping
