Casing Bead Mainly Used at the Joints of Walls and Ceilings

Casing bead is an edge treatment material used in construction and interior design, primarily at the joints of walls and ceilings. It is usually made of metal or plastic, designed to provide a sturdy and flat edge, ensuring a smooth and aesthetically pleasing connection between materials such as drywall. The primary function of casing bead is to protect edges from impact and wear, reducing damage caused by everyday use.

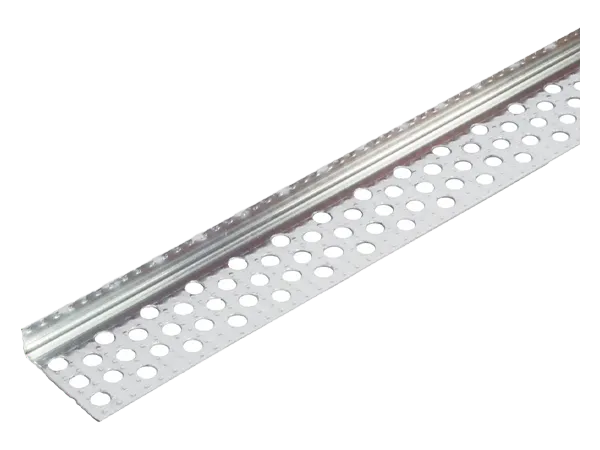

Casing bead
Category
  • Render stop bead

    Render stop bead

  • Plaster stop bead

    Plaster stop bead

Render stop bead

Render stop bead is used to obtain a neat bell-cast lower edge at the bottom of the external render finish to protect the edge and provide excellent protection to masonry against run-off water.

Table 1: Render Stop Bead Specification
Reference Plaster Depth (mm) Length (mm) Material
RSBGS16 16 3000 Galvanized steel
RSBGS19 19 3000 Galvanized steel
RSBSS16 16 3000 Stainless steel
RSBSS19 19 3000 Stainless steel
Plaster stop bead

Plaster stop bead is a kind of J-shaped angle bead made from galvanized steel sheet or stainless steel sheet.

Plaster stop bead provides straight edges for one or two-coat veneer plaster finishes to wall openings and wall or ceiling intersections and protect plaster edges from damage. Besides, its wide wings enhances the bonding property of the plaster to prevent it from cracking.

Table 2: Plaster Stop Bead Specification
Reference Plaster Depth (mm) Length (mm) Material
PSBGS10 10 2400/2700/3000 Galvanized steel
PSBGS13 13 2400/2700/3000 Galvanized steel
PSBGS16 16 2400/2700/3000 Galvanized steel
PSBGS19 19 2400/2700/3000 Galvanized steel
PSBSS10 10 2400/2700/3000 Stainless steel
PSBSS13 13 2400/2700/3000 Stainless steel
PSBSS16 16 2400/2700/3000 Stainless steel
PSBSS19 19 2400/2700/3000 Stainless steel
Packing & Shipping
Angle bead in carton package

Carton package

Angle bead in plastic film package

Plastic film package

Angle bead in wood case package

Wood case package

Well packed angle beads are loading onto the truck.

Loading & shipping
