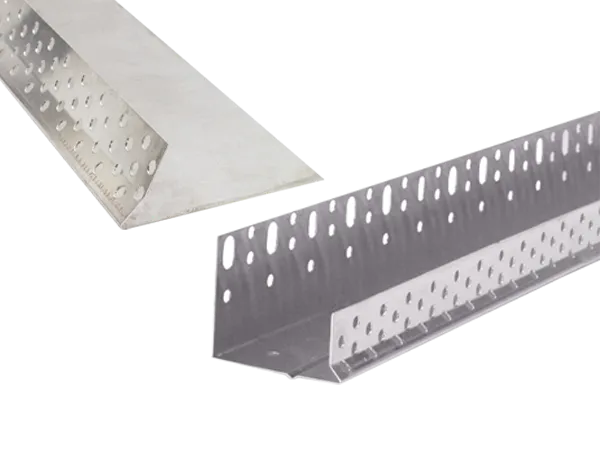

Channel lintel is a structural support product used above doors and windows or at openings in walls, usually made of high-strength steel to carry the weight of the superstructure. Its U - or C-shaped channel design not only provides excellent load capacity, but also facilitates construction and installation, evenly distributing pressure and reducing the risk of wall cracking. Aisle lints are suitable for brick, concrete and steel structures to provide reliable support and long-term stability for doors and windows, and are indispensable structural components in residential, commercial and industrial buildings.
Starting Channel
Starting Channel L Shape

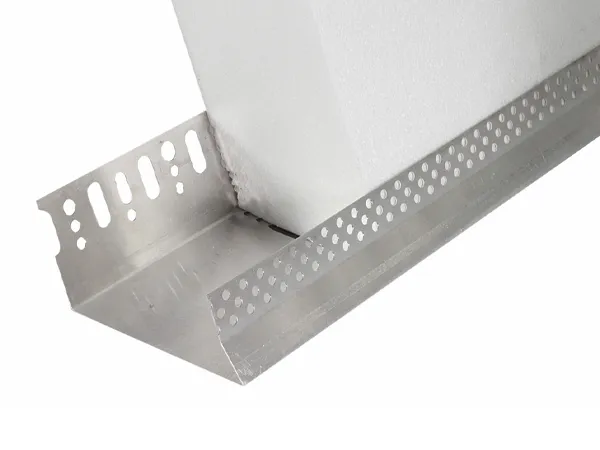

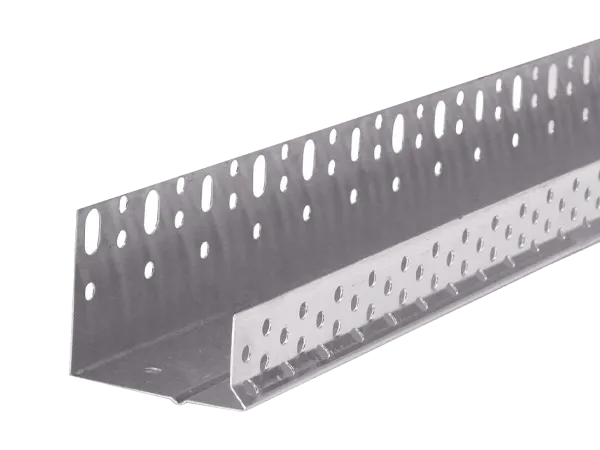

A starting channel is a structural component designed to provide initial support and precise alignment in building construction, often used in applications such as drywall installation and wall connection. The channel is usually made of high quality metal material, has good durability and corrosion resistance, and can effectively support and fix the wall structure. Its design combines lightness and strength, provides a solid foundation for subsequent construction, ensures the accuracy of installation and the stability of the overall structure, and is an indispensable and important component in building assembly.
| Reference | Description | Width (mm) | Length (mm) | Qty. / Pack |
|---|---|---|---|---|
| STC01 | 90 degree | 50 | 2500 | 16 |
| STC02 | 90 degree | 75 | 2500 | 16 |
| STC03 | 90 degree | 100 | 2500 | 16 |
| STC04 | 90 degree | 125 | 2500 | 16 |
| STC05 | 25 degree-pitch | 50 | 2500 | 20 |
| STC06 | 25 degree-pitch | 75 | 2500 | 20 |
| STC07 | 25 degree-pitch | 100 | 2500 | 20 |
| STC08 | 25 degree-pitch | 125 | 2500 | 20 |

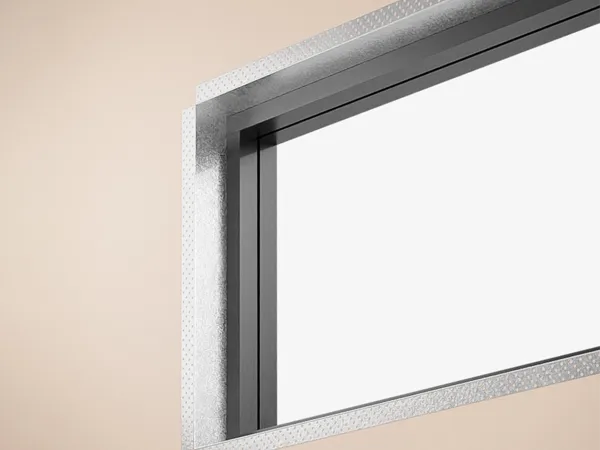

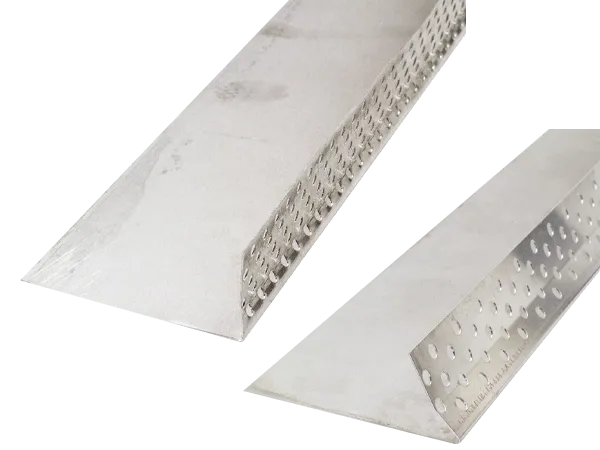

The starting channel L shape is a building component designed to install initial supports for walls and structures, providing precise positioning and stability in a right Angle L shape design. The product is typically made of high quality aluminum with a thickness range of 0.5 to 1.5 mm and is lightweight, durable and resistant to corrosion. The L-shaped start channel is widely used in a variety of construction scenarios to provide a solid foundation and reliable alignment support for subsequent installation.
| Reference | Description | Width (mm) | Length (mm) | Qty. / Pack |
|---|---|---|---|---|
| STCL01 | 90 degree | 65 | 2500 | 16 |
| STCL02 | 90 degree | 90 | 2500 | 16 |
| STCL03 | 25 degree-pitch | 65 | 2500 | 20 |
| STCL04 | 25 degree-pitch | 90 | 2500 | 20 |
